Author Topic: Spring Compressor Question  (Read 6348 times)
0 Members and 1 Guest are viewing this topic.
Shasmu
Hero Member
*****
*
Offline Offline

Posts: 3877


Shasta Mustang Supply


WWW Email
« Reply #15 on: March 27, 2011, 10:19:45 AM »

When you put the spring seat on, leave the nuts loose so it can rock on the a-arm. You will not have to compress the spring as much to install.

Logged

pmspero
Sr. Member
****
*
Offline Offline

Posts: 422



Email
« Reply #16 on: March 27, 2011, 10:41:28 AM »

Spring compression on an old Mustang has been an adventure until I made my own. It's very durable and has compressed dozens of springs the past 20 years without any worries.  The  threaded rod is 3/4" dia and 17" in total length. The spring plate is 3"x6" 1/2 thick plate steel with a 3/4" nut fully welded to it's base. The top plate is 5' dia and machined from 1/2" steel and counterbored to accept the thrust bearing. ( SKF #7305) The thrust bearing I used required a inside race bushing in order for the bearing to fit the 3/4" rod. I also machined a heavy washer to place between the 3/4" compressing nut and the bearing. I'll check my photo library to see if I've got any pics of it in action. However, I've got these pics for now. Hope they help.



* sc1.jpg (2.23 KB, 96x72 - viewed 375 times.)
* sc2.jpg (2.27 KB - downloaded 237 times.)

* sc3.jpg (2.32 KB, 96x72 - viewed 368 times.)

* sc4.jpg (2.28 KB, 96x72 - viewed 361 times.)
Logged
KensKR
Sr. Member
****
*
Offline Offline

Posts: 273


#3739 4spd. headers,Detroit locker,Hurst shifter


Email
« Reply #17 on: March 27, 2011, 11:54:03 AM »

My spacer is a piece of 1/2" pipe 2" long.
Kenny

Logged

Shasmu
Hero Member
*****
*
Offline Offline

Posts: 3877


Shasta Mustang Supply


WWW Email
« Reply #18 on: March 27, 2011, 01:15:50 PM »

Spring compression on an old Mustang has been an adventure until I made my own. It's very durable and has compressed dozens of springs the past 20 years without any worries.  The  threaded rod is 3/4" dia and 17" in total length. The spring plate is 3"x6" 1/2 thick plate steel with a 3/4" nut fully welded to it's base. The top plate is 5' dia and machined from 1/2" steel and counterbored to accept the thrust bearing. ( SKF #7305) The thrust bearing I used required a inside race bushing in order for the bearing to fit the 3/4" rod. I also machined a heavy washer to place between the 3/4" compressing nut and the bearing. I'll check my photo library to see if I've got any pics of it in action. However, I've got these pics for now. Hope they help.
I like the bearing action you have going on!

Logged

Rodney T
Hero Member
*****
Offline Offline

Posts: 1025


Email
« Reply #19 on: March 27, 2011, 07:52:32 PM »

The best spring compressor I ever used on a Mustang was the type that had the plate that touches the spring cast round and at a slight angle to fit the entire circumfrence of the spring.

Having said that, I have also removed the spring by using 6 radiator clamps.  3 on each side of one spring.  I don't recommend that and yes I do have all my original fingers. HeadSpin

Logged
Shasmu
Hero Member
*****
*
Offline Offline

Posts: 3877


Shasta Mustang Supply


WWW Email
« Reply #20 on: March 27, 2011, 08:18:10 PM »

The best spring compressor I ever used on a Mustang was the type that had the plate that touches the spring cast round and at a slight angle to fit the entire circumfrence of the spring.

Having said that, I have also removed the spring by using 6 radiator clamps.  3 on each side of one spring.  I don't recommend that and yes I do have all my original fingers. HeadSpin


The disk type compressor is shown in the Ford Shop Manual. Would love to find one of those.
Using radiator hose clamps would make me nervous.

Logged

94Cobra
Hero Member
*****
*
Offline Offline

Posts: 882



« Reply #21 on: March 28, 2011, 05:46:06 PM »

The spacer worked great.  Thanks for the advice.

HeadSpin





* IMG_3844.jpg (81.82 KB, 800x600 - viewed 130 times.)
Logged
KensKR
Sr. Member
****
*
Offline Offline

Posts: 273


#3739 4spd. headers,Detroit locker,Hurst shifter


Email
« Reply #22 on: March 28, 2011, 09:55:12 PM »

Glad to see you got your suspension removed. Don't forget to post some pictures when it's all back together.

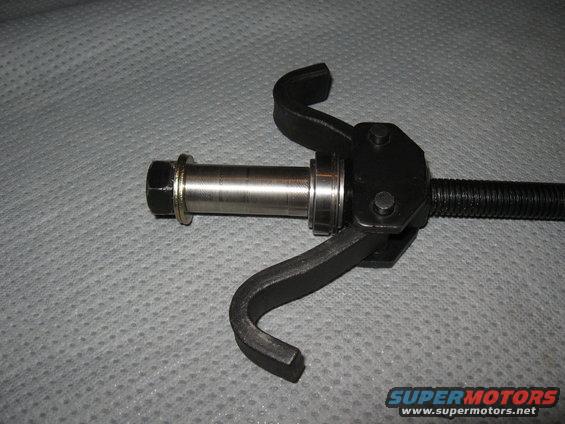

I made a few mods to my spring compressor at work tonight. Made a stainless spacer to replace the piece of pipe I was using and added a bearing.
Kenny


Logged

Shasmu
Hero Member
*****
*
Offline Offline

Posts: 3877


Shasta Mustang Supply


WWW Email
« Reply #23 on: March 28, 2011, 10:41:43 PM »

Ken.
Will the hooks hit the bearing before they are retracted enough to put into the spring?
Bearing might work better at the top of spacer?

« Last Edit: March 28, 2011, 10:43:59 PM by Shasmu » Logged

KensKR
Sr. Member
****
*
Offline Offline

Posts: 273


#3739 4spd. headers,Detroit locker,Hurst shifter


Email
« Reply #24 on: March 29, 2011, 10:23:45 AM »

Thanks, the hooks retract to 3-13/16" tip to tip with the bearing at the top.
Kenny


Logged

Shasmu
Hero Member
*****
*
Offline Offline

Posts: 3877


Shasta Mustang Supply


WWW Email
« Reply #25 on: March 29, 2011, 06:37:27 PM »

Thanks, the hooks retract to 3-13/16" tip to tip with the bearing at the top.
Kenny

Grin

Logged

94Cobra
Hero Member
*****
*
Offline Offline

Posts: 882



« Reply #26 on: April 03, 2011, 03:40:16 PM »

I soaked my spindles in gasoline and wire brushed them.  I found some factory paint markings.  The pink one is in the area of the upper ball joint.  There is a white or pink dab near the lower ball joint area.  There is yellow paint near the tie rod attaching location.  Now to decide if I should paint these spindles or just leave them as is and spray them with a metal protectant.  I noticed they began rusting almost as soon as the gasoline evaporated.



* IMG_3849.jpg (159.66 KB, 800x600 - viewed 111 times.)

* IMG_3850.jpg (138.9 KB, 800x600 - viewed 108 times.)

* IMG_3851.jpg (125.95 KB, 800x600 - viewed 93 times.)
Logged
Bob Gaines
Hero Member
*****
Offline Offline

Posts: 10063


« Reply #27 on: April 03, 2011, 04:17:15 PM »

I soaked my spindles in gasoline and wire brushed them.  I found some factory paint markings.  The pink one is in the area of the upper ball joint.  There is a white or pink dab near the lower ball joint area.  There is yellow paint near the tie rod attaching location.  Now to decide if I should paint these spindles or just leave them as is and spray them with a metal protect ant.  I noticed they began rusting almost as soon as the gasoline evaporated.
Wire brush would not be my first choice under the circumstances Wink . For those reading- A stiff plastic scrub brush would be best to first start with. It will not be as aggressive as a wire brush but will still cut through grease. I would hate to see others reading not to consider a stiff plastic brush , kerosene , and elbow grease to first check for markings and to determine if surface just needs a little evapor rust or similar product and metal protector product to bring back the finish to original or if bead blasting and restoring the heat treated metal look is the the next option. Just some thoughts on the subject.  Chug a Lug Bob

Logged

Shelby Car Enthusiast, Collector, Shelby Concours Judge
Shasmu
Hero Member
*****
*
Offline Offline

Posts: 3877


Shasta Mustang Supply


WWW Email
« Reply #28 on: April 03, 2011, 04:33:50 PM »

   Sparks can come from either the wire brush, or the contact brushs if you are using an electric drill. Shocked Be careful.
 Scotch brite pads can come in handy also.

Logged

SFM6S
Sr. Member
****
*
Offline Offline

Posts: 482


« Reply #29 on: April 03, 2011, 08:46:46 PM »

I personally feel that gasoline is an unwise choice to use as a cleaning solvent. Kerosene or mineral spirits are safer, IMO. Also, if rags are used, soak them in a bucket of water after using.  This will keep spontaneous combustion from occurring.

Joe
